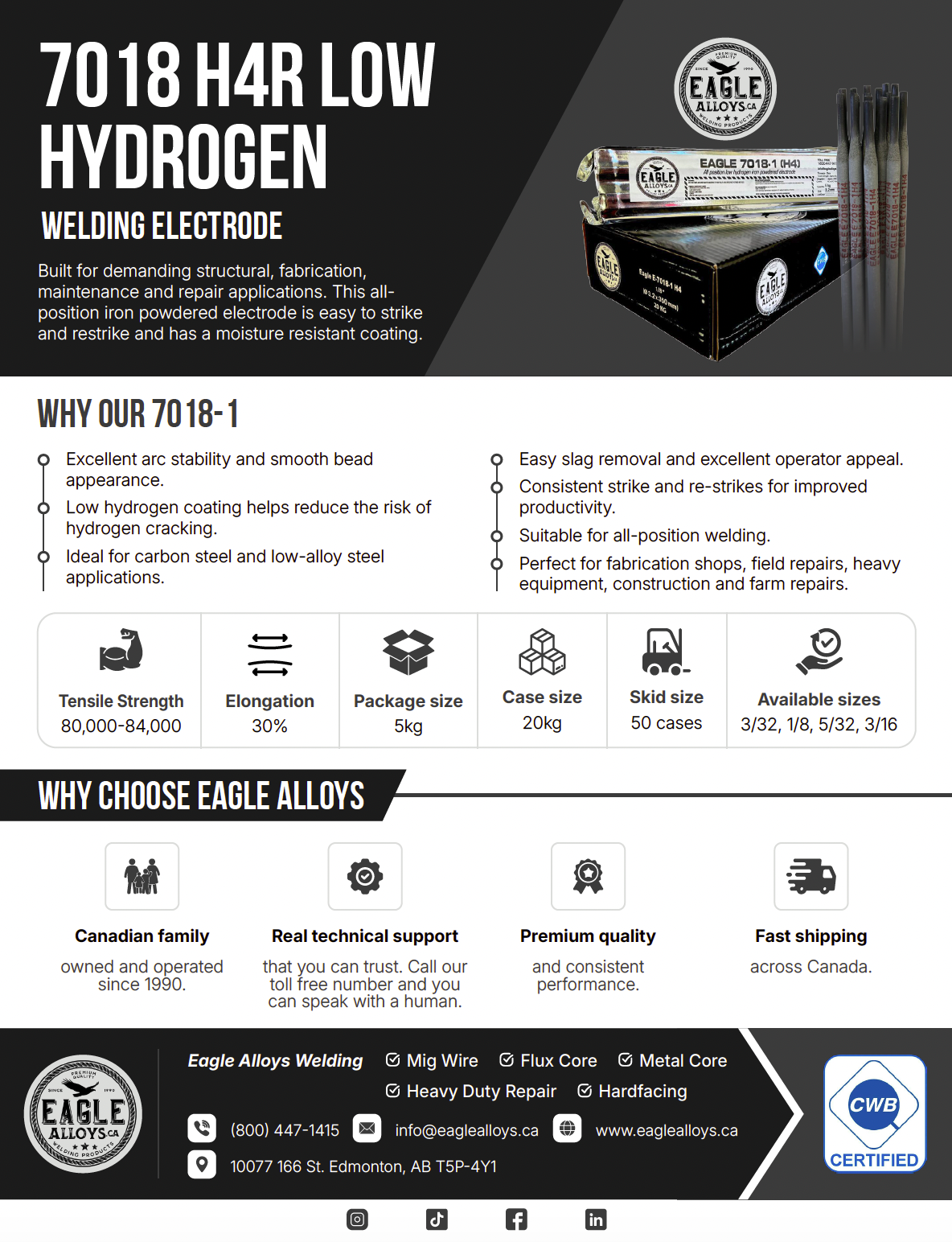

7018-1 H4R Low Hydrogen Electrode | Eagle Alloys Welding

For welding of a variety of carbon and low ally steels in the 50 Ksi (345 MPA) minimum yield. It is an excellent electrode for applications that require tough impact hardness at low temperatures.

Use DC Reverse [+] Polarity. Clean weld areas with a grinder and groove out the cracks using the Eagle 188.
Vertical welds should be welded from bottom up using the stringer bead technique for maximum strength. A medium arc length should be maintained while welding.

The Eagle 7018-1 H4R is an all position welding electrode that produces exceptional good impact results at low temperatures in both welded and stress relieved conditions.

Current: DC Reverse [+] Polarity
Sizes: Inches 3/32, 1/8, 5/32, 3/16, 1/4
mm 2.50, 3.25, 4.00, 5.00, 6.00
Amperage: 60 - 100, 110 - 150, 150 - 190, 210 - 280, 300 - 400
